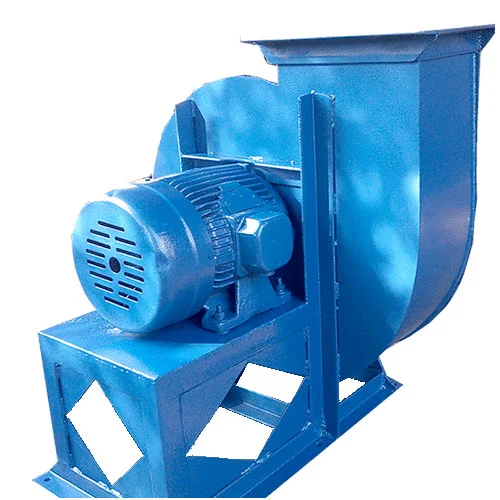

ID Fan

ID FAN

Medium pressure (up to 600 mmwc) is available in backward bladed, backward curved radial tipped bladed, backward inclined, straight radial bladed and open T bladed designs to cater to various processes and application requirements.

CENTRIFUGAL FANS

Medium Pressure ID & FD FANS:

Capacity range of up to 300,000 m3/h in SISW and 500,000 m3/h in DIDW
Total efficiency of up to 82% in backward curved, 80% in backward inclined and 75% in straight radial bladed designs
Impeller diameter of upto 3000 mm
Available in V belt driven and direct drive configurations
Dynamically balanced
Welded steel construction that can handle moderate dust loads and temperature rating of up to 500

High Pressure ID & FD Fans:

High pressure (up to 1500 mmwc) are available in backward bladed and straight radial bladed designs to suit various processes and application requirements
Capacity range of upto 100,000 m3/h in SISW
Total efficiency of upto 78% in backward curved and 75% in straight radial bladed designs
Impeller diameter of upto 2000 mm.
Available in V belt driven, direct drive configurations.
Dynamically balanced
Welded steel construction that can handle moderate dust loads and temperature rating of up to 300
